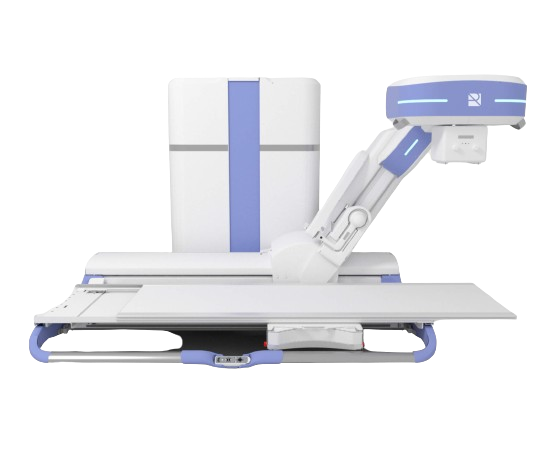

Xcellence Dynamic

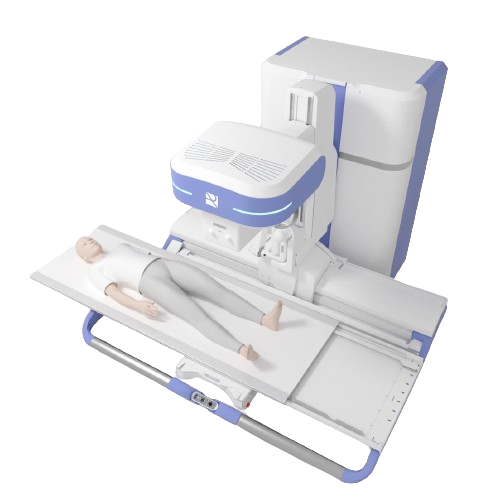

New "three-in-one" remote control room designed for fluoroscopy, radiography and direct exposures with full rotation of +/- 90º degrees for an installation without limitations.
Features
- 3-in-1 solution: Equipment designed for general radiography and continuous or pulsed fluoroscopy in adults, children or infants.
- Fully remote controllable system

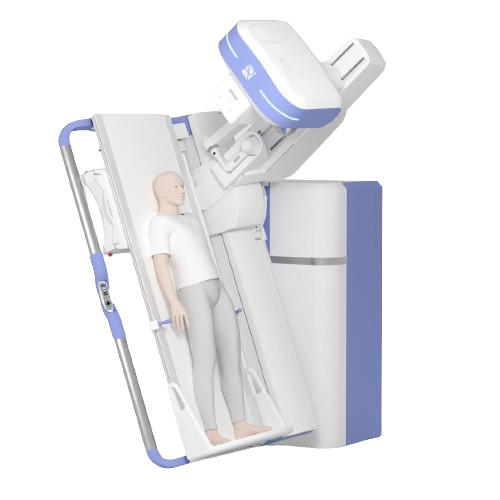

- Motorized tilting ± 90°.
- It will optimize image quality with reduced patient dose.
- Maximum patient coverage (head-to-foot) of 2.5m without the need for patient repositioning.
- Generator power from 50kW to 80kW.
- Digital detector prepared to perform radiographic, digital/cinema and fluoroscopic examinations.
- Automatic Stitching software to be installed on the acquisition or display console.
Acquisition
- Low Dose Fluoroscopy.
- High Quality Fluoroscopy (high quality).
- Digital Radiography (instant image).
- Fluoroscopy in Road Mapping mode (optional).
- Fluoroscopy in DSA mode: Remasking, Subtraction, Landmarking, vascular tracking and stenoisis (optional).
Optional
- Upgrade 20kW
- Laser locator.
- Integrated dosimeter.
- DSA vascular packete. In
- Automatic login.
- DICOM functions.
- Wi-Fi pedal.
- RFID card reader.
- Wireless trolley.
- Detector 30×30.
- Rotating anode.
Clinical Use
- Positioning fluoroscopy.
- Dynamic examinations: esophagus, EGD, barium enema, etc.
- Urogenital Tract Examinations: Nephro, Urography, Cystography, etc.
- DSA Angiography: Road mapping, landmarking, pixel shift, remasking mask superposition (optional).
- Interventional radiology.
- Hysterosalpingography.
- Arthrography.
- X-ray: Skull, thorax, abdomen, spine and pelvis, osteo-articular, extremities, tomography, stitching/telemetry (optional).

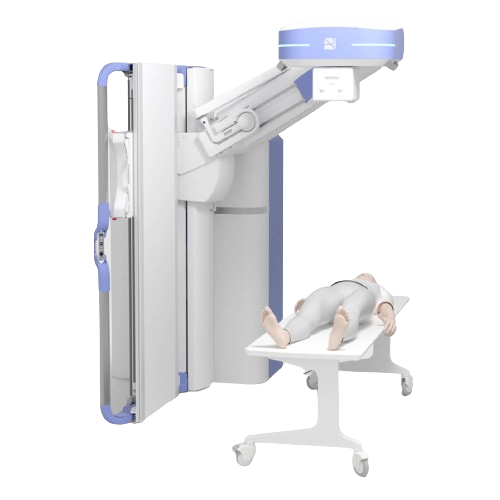

- Direct projections: Extremities, pediatrics, lateral projections, stretcher radiography, imaging of patients with limited mobility.
- Direct projections: Extremities, pediatrics, lateral projections, stretcher radiography, imaging of patients with limited mobility.
Technical Specifications
Column / Table
- Motorized Table Tilting
- 90°. Speed at 6°/s
- Tube rotation
- ± 180°
- (SID Min-Max) Motorized DFP
- 110cm - 180cm
- Motorized column angulation
- ± 40°
- Collimator
- Automatic and Motorized with LED and laser light
- Collimator rotation (manual)
- ±45º (optional)
- Longitudinal movement detector Motorized
- Longitudinal movement detector Motorized
- Detector rotation
- Vertical/horizontal (40°/s)
- Overall dimensions and weight
- 226 x 235 x 189 cm, 1600Kg. (In horizontal position, minimum height, minimum SID, column 0º)
- Board Dimensions
- 225 x 81 cm
- Vertical movement of table top (variable height) Motorized
- From 38 to 148cm, speed 6cm/s
- Longitudinal movement Motorized board
- 120/60cm (other lower values on request), speed 8cm/s
- Motorized lateral movement
- ± 18cm, speed 6cm/s
- Equivalent filtration
- 0.55 mm Al at 100kVp
- Width of radiolucent area
- 60cm
- Material Board
- Carbon Fiber
- Maximum Patient Weight (IEC 60-601-1)
- 230Kg without limitation, 310Kg with restrictions
- Footrest width
- 40cm, supported weight 230Kg
Automatic Tomography
- Curvilinear tomography in one direction
- Three angles can be selected during installation from 8° to 40°.
- Thickness of the cutting layer
- 1.5mm (at 40°), 3mm (at 20°), 6mm (at 10°)
- Maximum Speed
- 0.5s for 10°, 1s for 20°, 2s for 40°.
- Fulcrum height
- From 0 to 300mm in steps of 1mm or 5mm. Automatic adjustment over the set height (increments and decrements) in the millimeters desired by the operator.
Motorized Retractable Compression Device (optional)
- Pallet compression
- Up to 200N (130N factory programmed) with a maximum column angulation of ±10°.
- Minimum distance to the board in compression
- 10cm
- Patient Safety System
- Inhibition of table top, spine and angulation movements during compression. In case of power failure on the table, if the patient is compressed, it can be released by a manual system.
