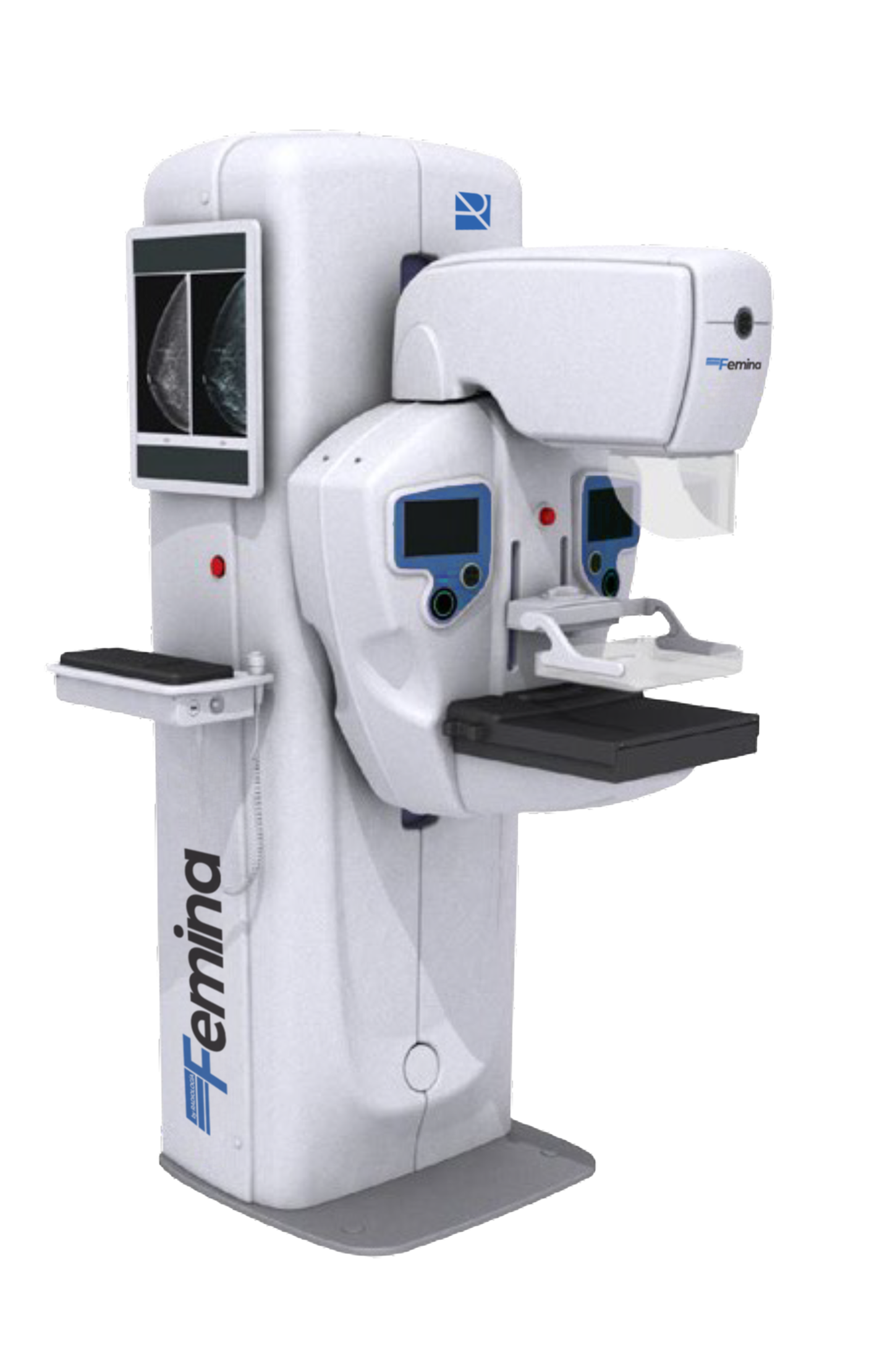

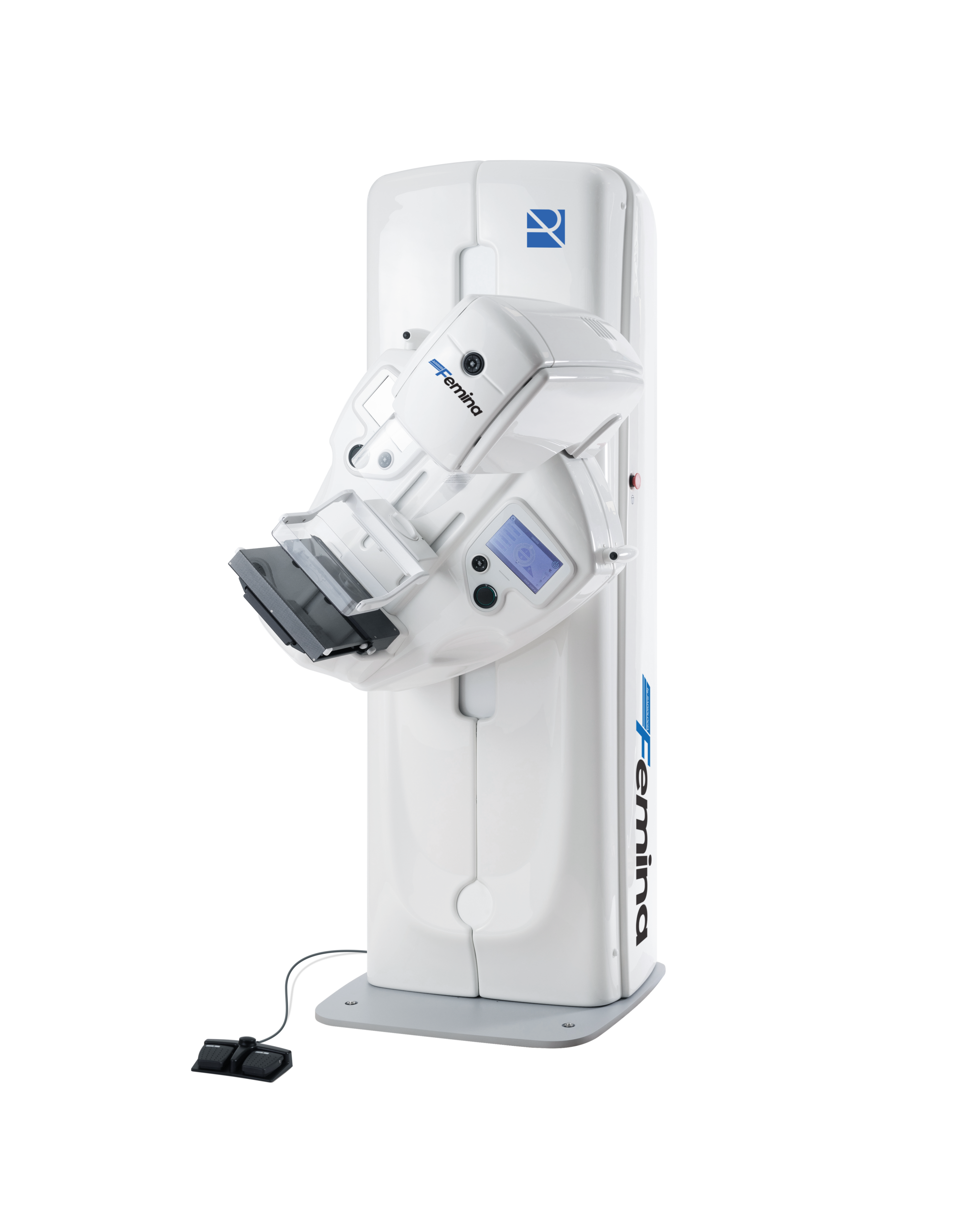

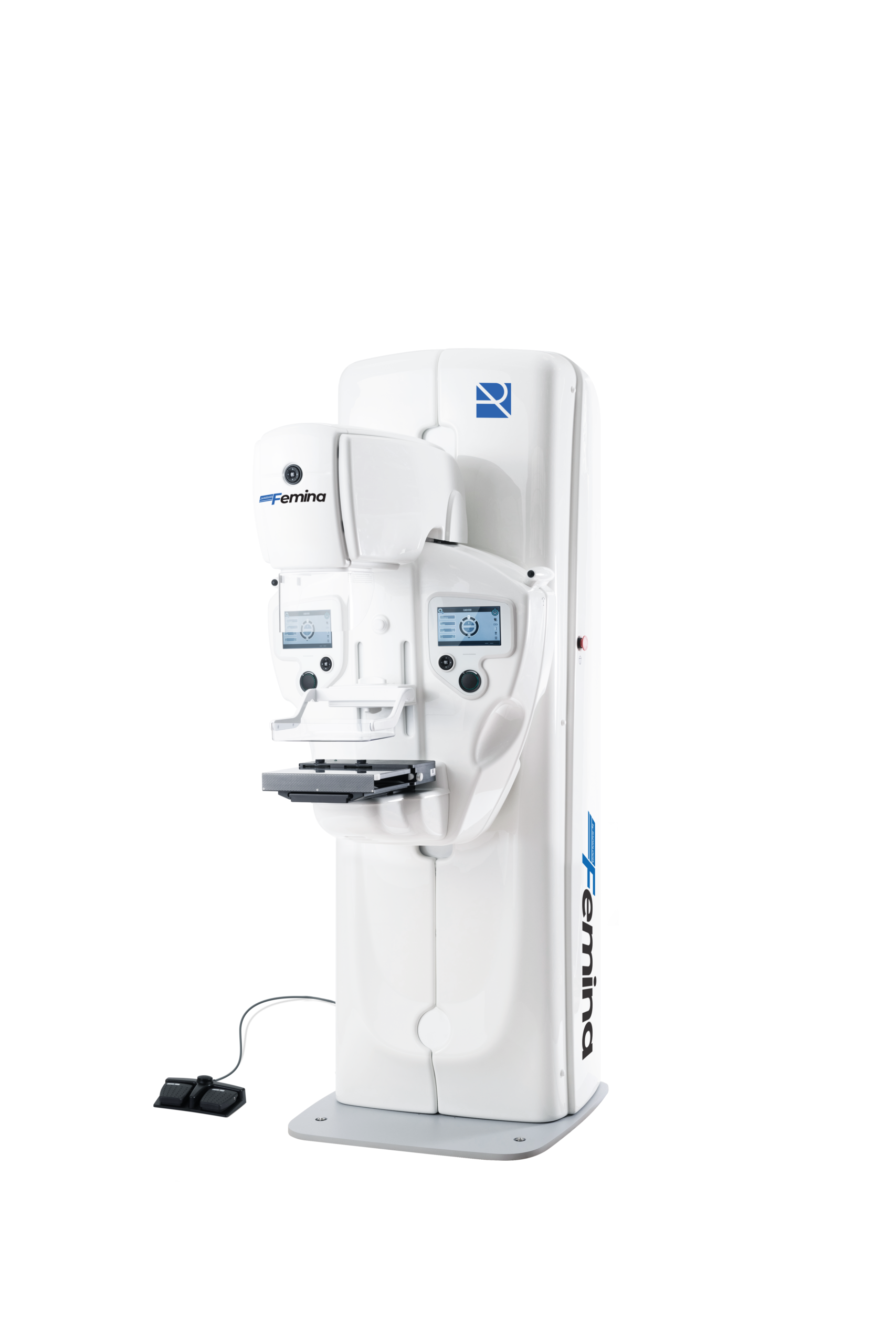

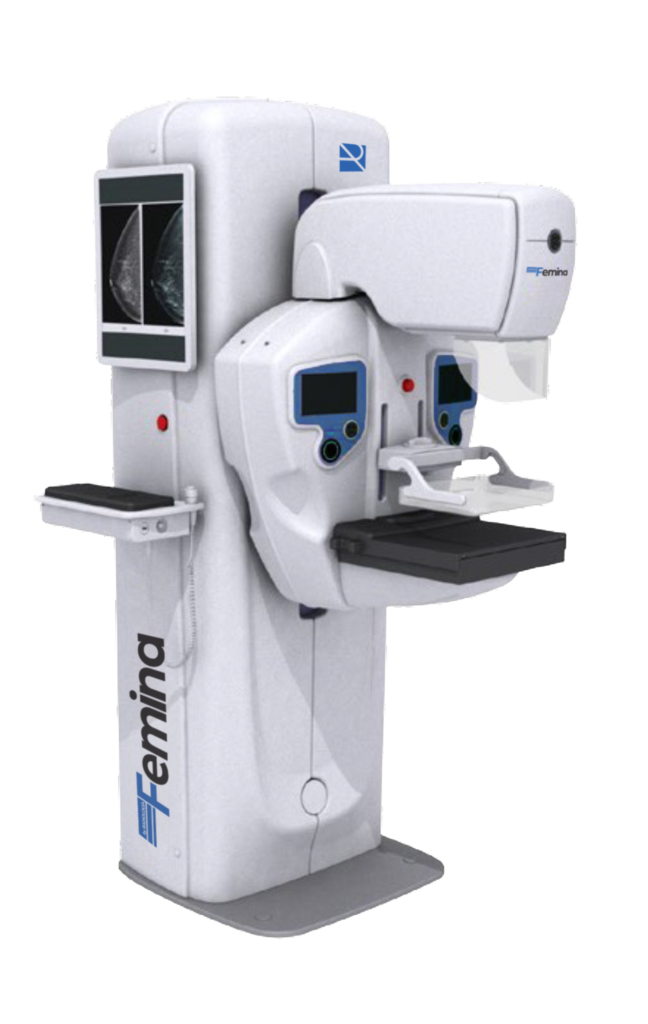

Femina
Analog mammography system designed for screening and diagnostic processes, with high frequency generator, Potter-Bucky system and a wide range of accessories for magnification, two-dimensional biopsies and precise positioning, guaranteeing high quality images and reliable diagnosis.
Features
- CONFIGURABLE: ANALOG ISOCENTRIC ANALOG FEMINA with 7.4 kW high frequency generator, working range from 20 to 40 kV with 0.5 kV resolution, biangular mammographic tube and ergonomic C-arm movement. Analog AEC system with advanced automatic calibration of the light meter. Potter Bucky 18×24 and 24×30 (optional) with collimation for standard formats. Analog acquisition system via chassis. 24×30 compression paddles, displaced and perforated for 2D biopsies. X-ray protective screen for the patient.
- COMPRESSION SYSTEMControlled and progressive breast compression system, with precise regulation of the applied force, triple safety system (electronic, electromechanical and quick mechanical release) and visualization of the compression force and the thickness of the compressed breast, guaranteeing comfort and safety during the examination.
- AUTOMATIC EXPOSURE CONTROL (AEC) that adjusts radiographic parameters based on breast thickness and density, ensuring consistent and reliable diagnostic images in screening and diagnostic studies.
- ACQUISITION SYSTEMPotter Bucky: Analog two-dimensional acquisition system based on chassis, compatible with multiple clinical configurations. Potter Bucky with removable grid and auxiliary panel with information on C-arm angulation, compression force and thickness, as well as identification of the projection to be performed.
- MAGNIFICATION AND PROCEDURES: Magnification kit with ×1.5 and ×2 factors, with automatic focus selection and support for chassis without grid. Prepared for two-dimensional biopsies by means of perforated compression blade and compatible with external 3D stereotactic systems.

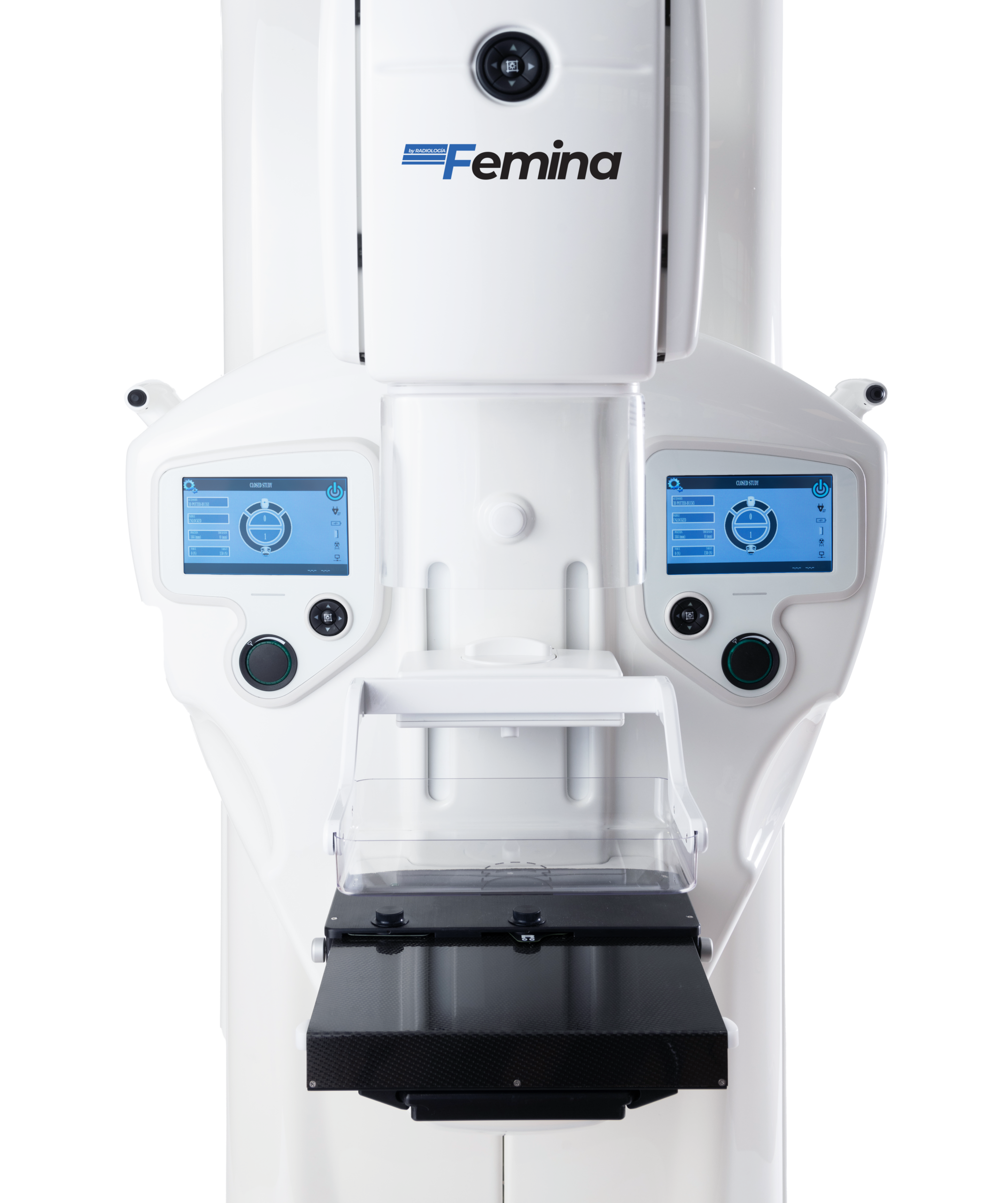

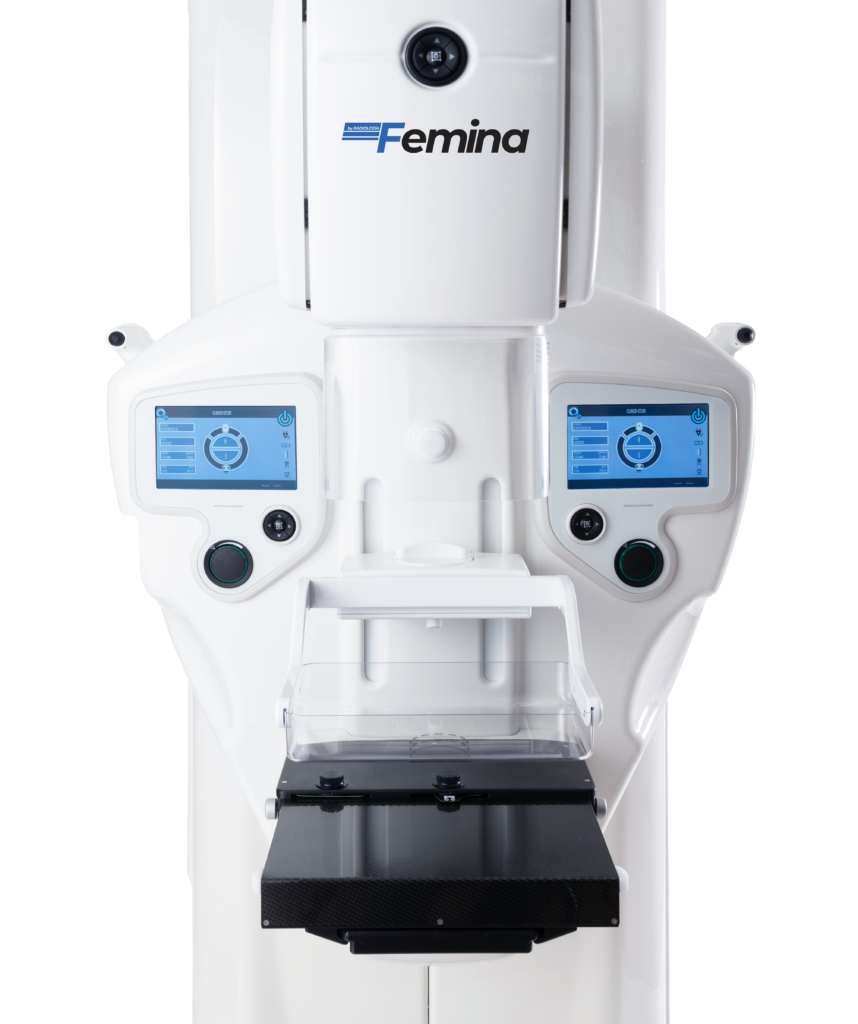

- INTERFACE AND CONTROL: Integrated control panel for monitoring X-ray parameters and foot control for hands-free operation, optimizing the operator's workflow.
- PROTECTION AND ERGONOMICSProtection and ergonomics: Functional and ergonomic design that facilitates patient positioning, reduces examination time and improves the clinical experience, with anti-radiation screen options.
Acquisition
- Low Dose Fluoroscopy.
- High Quality Fluoroscopy (high quality).
- Digital Radiography (instant image).
- Fluoroscopy in Road Mapping mode (optional).
- Fluoroscopy in DSA mode: Remasking, Subtraction, Landmarking, vascular tracking and stenoisis (optional).
Optional
- Mini-working tower with software for multimodality (FFDM, CR, digitized films, ultrasound, MRI, Tomo) management / image processing and 2D CAD software for mammography FULL DICOM 3.0 MG compatible.
- 2D CAD software for mammography.
- Different diagnostic monitors.
- Various phantoms.
- Prona table for stotaxy.
- Multimodal workstation
- Alma mamo workstation.
Clinical Use
- Breast screening and diagnosis by 2D analog radiographic breast imaging, including needle localization studies and two-dimensional biopsies.
- It allows a reliable and consistent radiological interpretation, with high image quality in routine and diagnostic studies.
- Proven clinical solution for screening and diagnostic evaluation programs, with high reproducibility and operational efficiency.
- Compatible with magnification procedures, 2D biopsies and stereotactic localization using external systems.
Technical Specifications
SID
- Predefined projection position (no.)
- 5 programmable projections (LAT, OBL, CC, OBL, LAT)
- Rotation angle display
- Control Panel and Auxiliary Display
Understanding system
- Blade compression movements
- Motorized and manual fine adjustment (2 tactile wheels)
- Shovel support
- Quick mechanical release
- Maximum clearance available between compression paddle and Potter Bucky
- 325 mm with offset compression blades
- Adjustable compression force range
- From 70 to 200N
- Indicated compression force
- Effective force applied with a resolution of 1N
- Compression vane lowering speed
- 4cm/s at the outlet decreasing proportionally
- Compression force safety device
- Triple: Electronic, electromechanical, mechanical
- Gentle release of compression after exposure
- Selectable from the acquisition station
- Aluminum equivalency of the compression vane
- < 0.2 mm Al (0.135 mm Al≈30 kV)
