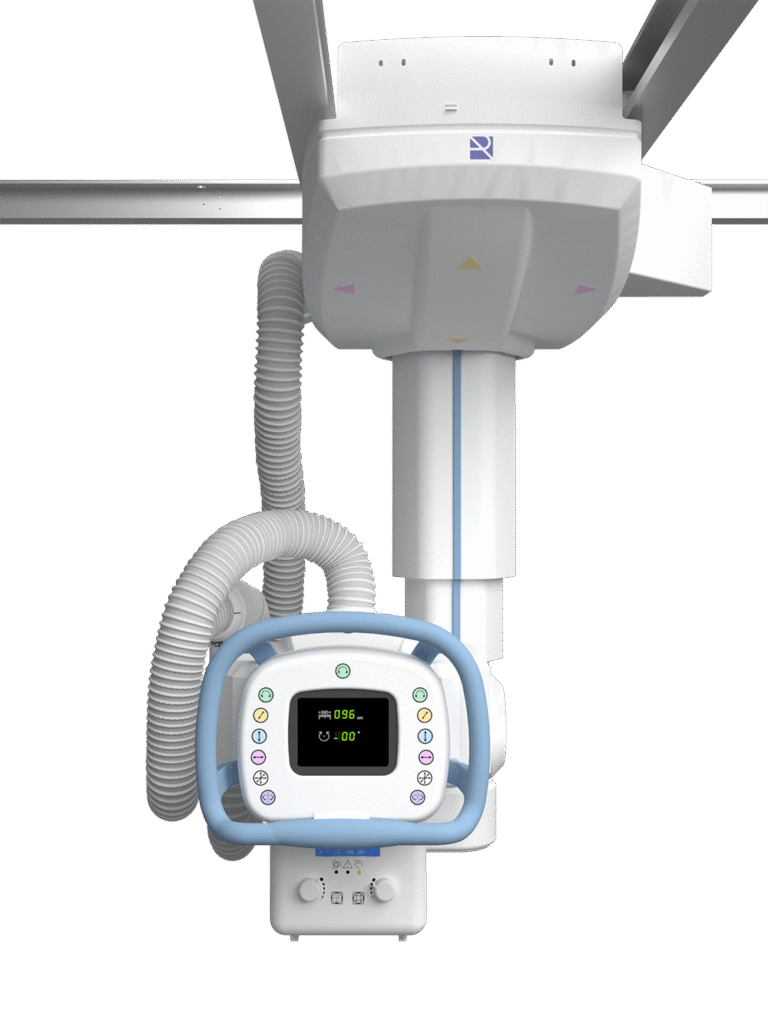

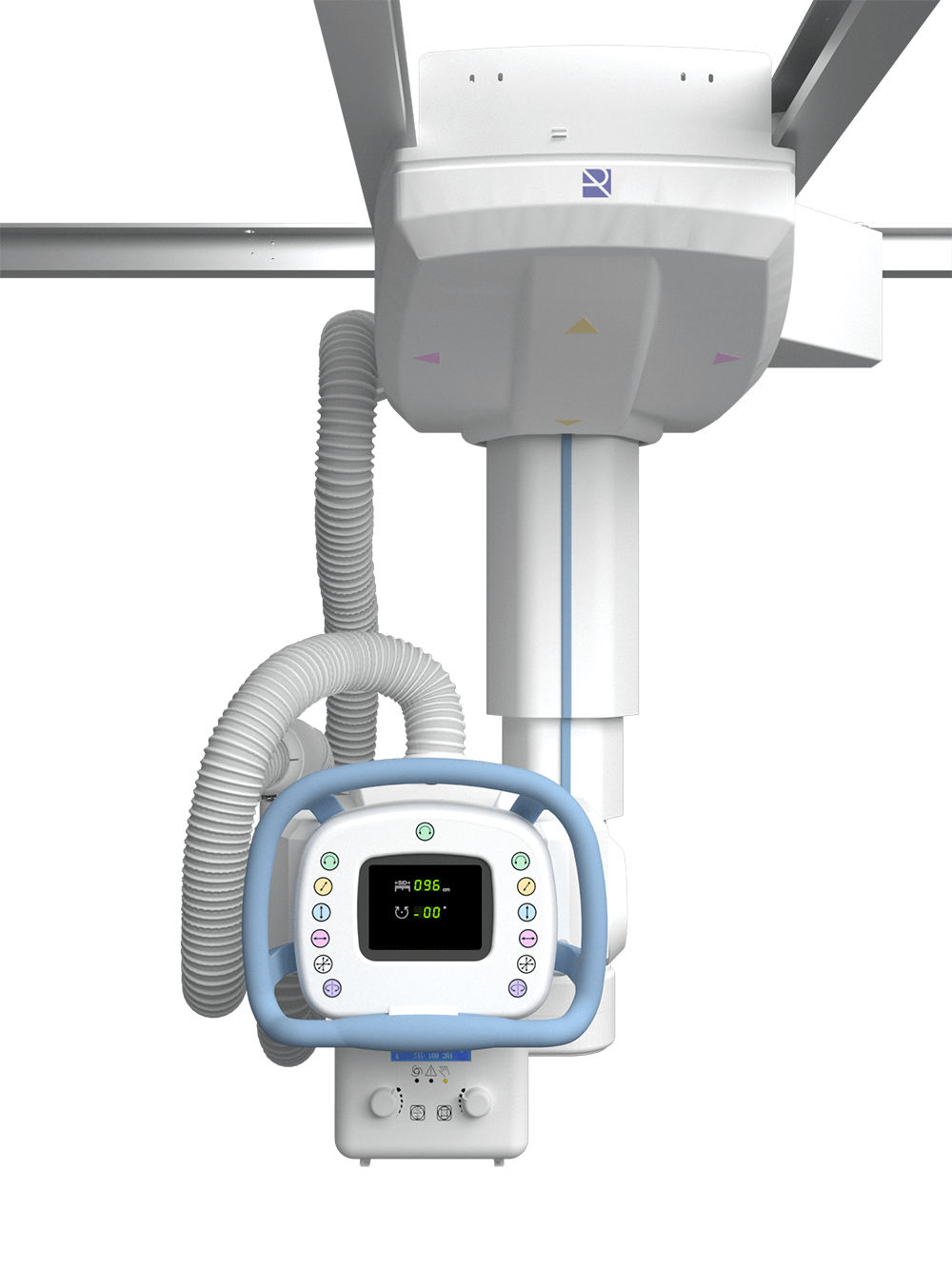

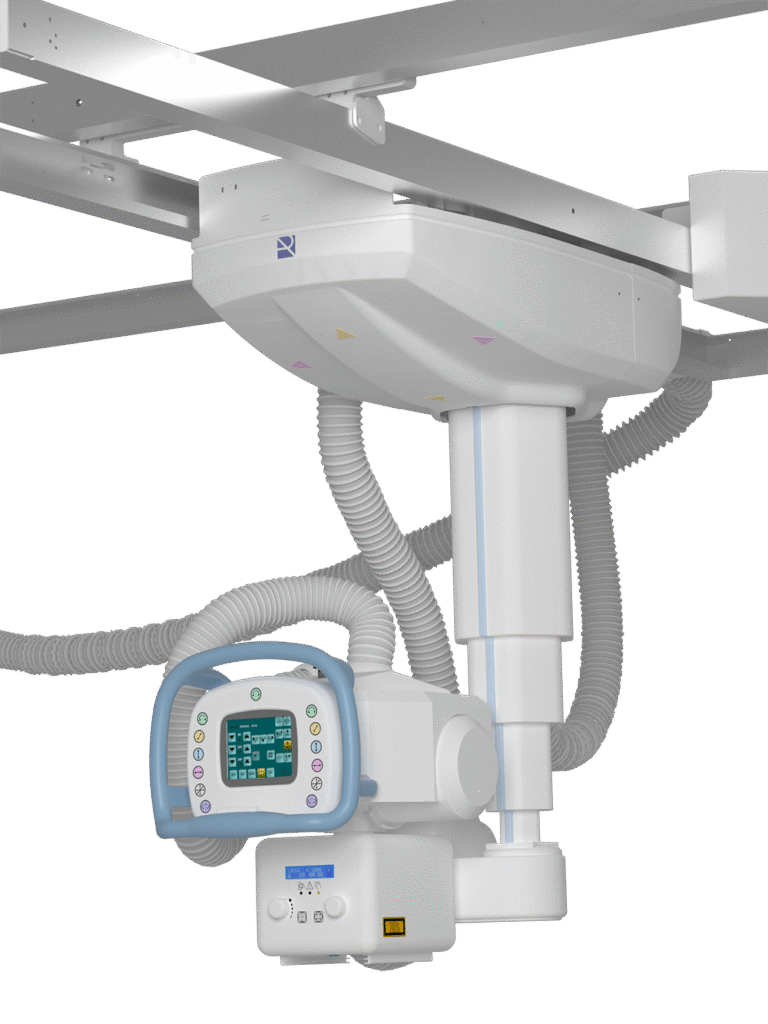

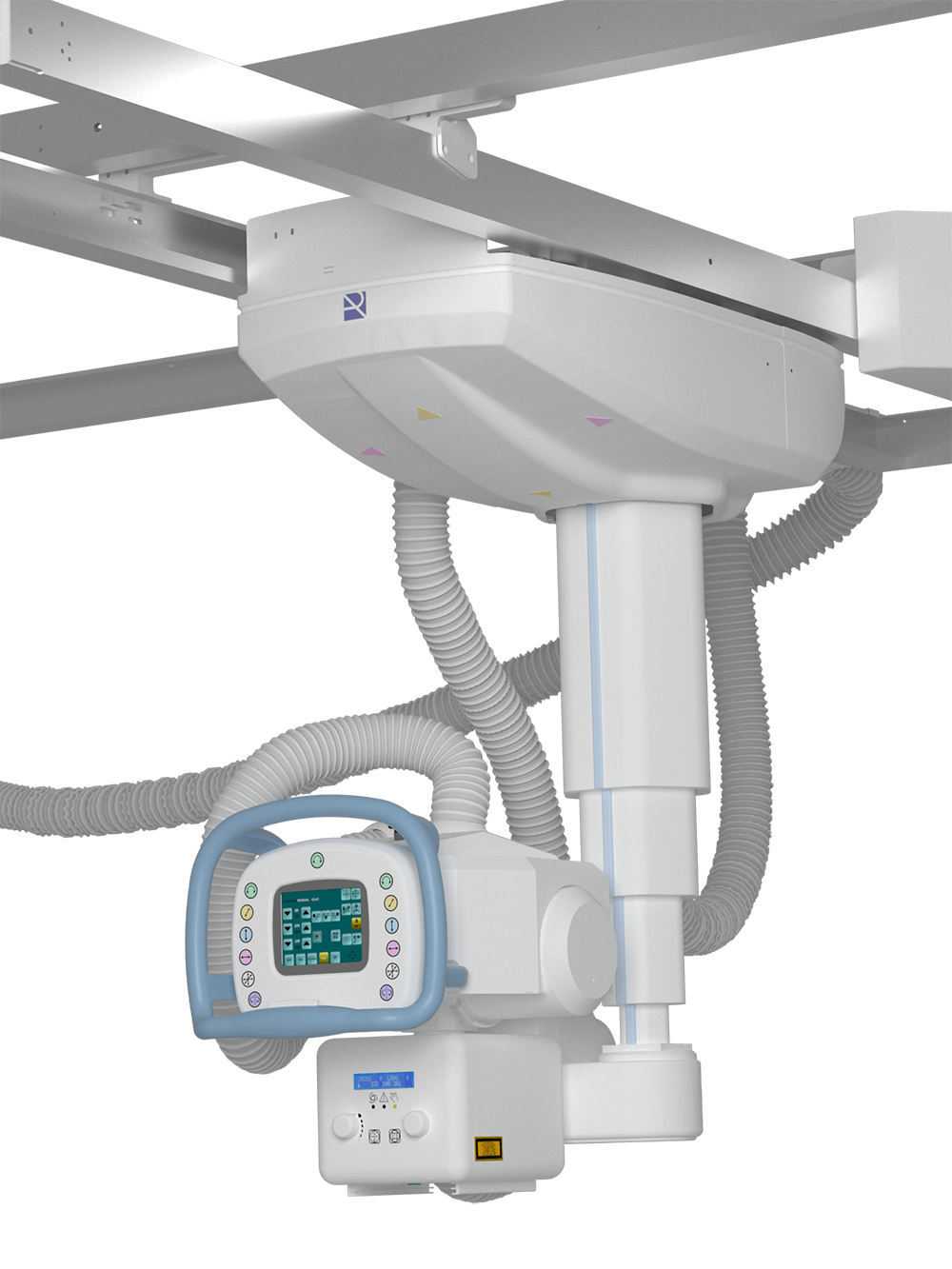

Polyrad CS
Polyrad CS From basic to advanced solution - Ceiling suspension.
Features
- High stability without vibration. Lightweight telescopic column to maximize productivity.
- Servo-assisted automatic positioning in self-positioning, autotracking and self-centering: CSAP (all axes), CSAT-TFT, CSAT (vertical axis).
- Counter-balanced, stress-free manual positioning: CSST (all axes except the vertical axis, which is servo-assisted). 7" screen on TFT touch screen console or digital console.
- 7" screen on TFT touch screen console or digital console.
- Powerful innovation software with optional virtual grill and edge enhancement.
- Easy acquisition and self-positioning with just one click on the patient's name.
- Efficient dose management and control.
- Latest technology in digital detectors (fixed or removable), possibility of rotating tray.
- Anti-collision sensors (optional) and virtual safety area.
- Acoustic indicators and speed control.
- Stops (configurable) centered on the receivers.
- Control inside and outside the room with: control panel/remote control (optional)/control console.
- Maximum table load (350Kg) Table top lowering up to 55cm.
- Possibility of motorized WBS in all its movements (vertical, angulation and rotation) with foot control.
- (Optional) Automatic stitching (vertical and horizontal).
- (Optional) Electronic tomography (linear and angular).
- (Optional) Instant image review with preview after exposure.

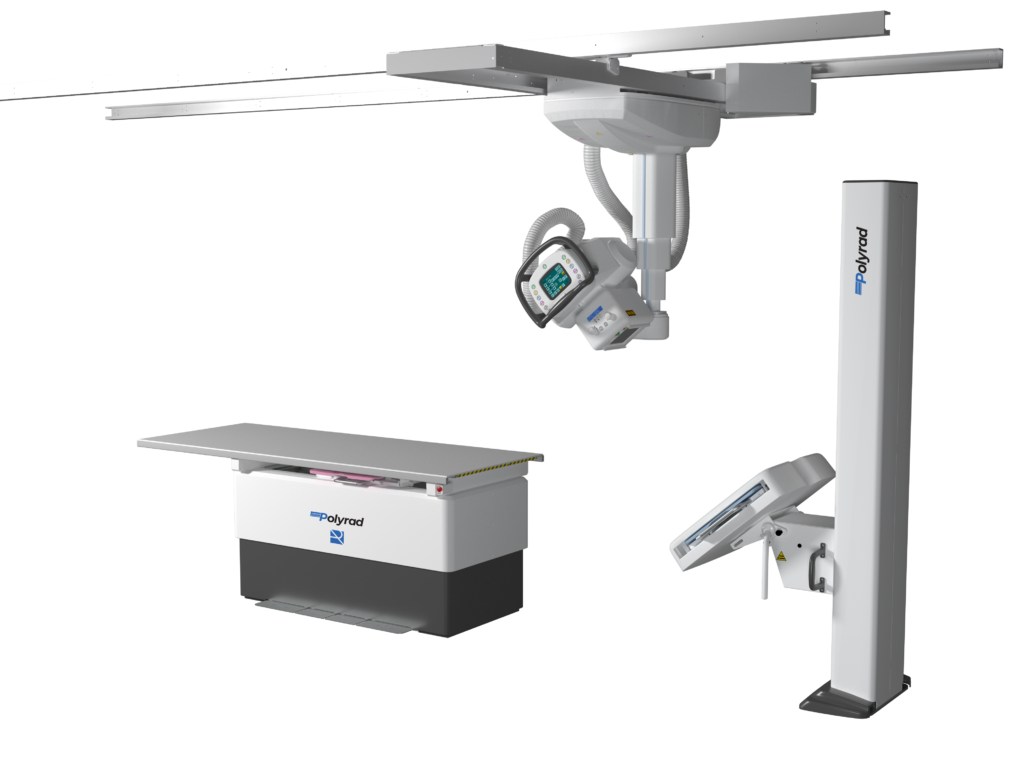

Large room coverage with displacements
- Longitudinal.
- Transversal.
- Vertical.
Polyrad CS models
- Polyrad CSAP
- Polyrad CSAT-TFT
- Polyrad CSAT
- Polyrad CSST
With Autopositioning, Autotracking and Autocentering.
Clinical Use
- General radiology and traumatology with Auto-positioning for increased workflow and no limitations with room size.
- Skull.
- Chest.
- Abdomen.
- Spine and pelvis.
- Osteo-articular.
- Extremities.
- Stitching/automatic telemetry (optional)
- Electronic tomography (automatic)
Technical Specifications
Suspension
- Dimensional tolerances
- ±1%
- Transverse rails
- From 2,000mm to 3,500mm (79 to 138")
- Cross travel min-Max
- From 901mm (35") to 2.351mm (92")
- Longitudinal rails
- From 3,358 mm to 6,000 mm (132 to 236")
- Min-Max longitudinal travel
- From 2,224mm (87") to 4,866mm (191")
- Total Length of Column to Ceiling (in Vertical Axis)
- 2,641 mm (104")
- Minimum Distance Spotlight-Ceiling
- 737mm (29")
- Maximum Distance Spotlight-Ceiling
- 2,307mm (91")
- Vertical Travel
- 1,570mm (62")
- Tube rotation
- ±180°
- Tube angulation
- ±135°
Board
- Maximum patient load capacity
- 350Kg (771,6 lbs)
- Length
- 2200 mm (86")
- Width
- 868 mm (34")
- Maximum height
- 895 mm (35")
- Minimum height
- 550 mm (22")
- Operating functions
- Auto-positioning, Auto-tracking, Stitching (optional), Tomography (optional)
- Total weight with board
- 335 kg (738 lb)
- Pedal on Table Base for
- Electromagnetic Brake Control, Raise and Lowering Motorization
- Anti-collision system area
- Incorporated
